Alph - A Little Process Helper

While a sound knowledge of process fundamentals and clever use of equations can often provide explicit solutions to problems that might require iterative loops in a modular simulator, sometimes you have to resort to some sort of iteration to get the answer you need. This tutorial will introduce the use of the **Function Solver Tool** to address to such problems.

If you have not yet worked through the previous tutorials, you might want to begin with them, but a completed tutorial 6 case is available.

Alph tutorial pages:

- 1 - Getting started and creating a fluid
- 2 - Hydrate and phase envelope tools
- 3 - Fluid interactions and formulas
- 4 - Mixing and component splitting
- 5 - Distillation Tower
- 6 - Simple refrigeration cycle
- 7 - Function Solver
- 8 - Material Recycles

In this tutorial we shall:

- Use the
**Function Solver Tool**to adjust the low temperature separator temperature to achieve a desired sales gas dew point in the gas plant from the previous tutorials. - Add a second function to the solver and have it solve both simultaneously

**Note:** the use of the function solver for stream recycle problems will be addressed in the following Recycle Tutorial.

The **function solver tool** essentially attempts to solve problems of the form:

f(x) = 0

You supply the function or functions as formulas that should equate to zero at the solution. The solver has output values of **x**, which you use in formulas, either directly in the solver formulas, or more typically in formulas defining fluid or other values that are in turn indirectly referenced by the solver formulas.

Miscellaneous solver information:

- The allowable error in function values is 0.0001, so your error formulas should be scaled appropriately.
- Initially or whenever the solver is reset, the output values are all equal to zero.
- If there is only a single equation, the output value at the solution must lie in the range of -10 to 10. This is not required for multiple functions, but you should still scale your problem so the solution values will be roughly in that range.
- A single equation problem will use a Brent solution algorithm, while multiple equations are handled with Broyden.

If any (all?) of this seems confusing, hopefully the following examples will make it much clearer.

For the first task, load the saved gas plant case used in earlier tutorials. If you don't have the case saved, you can obtain the completed tutorial 6 here. The flowsheet this represents is:

Back in tutorial 3 we manually adjusted the low temperature separator temperature to roughly meet a desired sales gas dew point temperature. We will now use the function solver to automate this.

The first thing we shall do is create a variable to hold the desired dew point temperature.

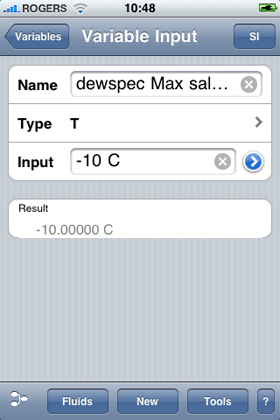

Go to the information diagram and tap the **Add Var** button to create the variable. Name it "dewspec", with a description if you wish. Set its **Type** to **T** and its value to -10 C.

Return to the information diagram and tap the **Add Tool** button to create the solver tool. Select **Function Solver** from the list of tool types.

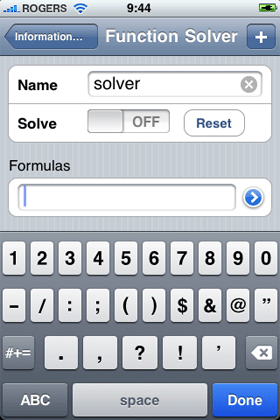

In addition to the name field, the solver has a switch to turn it on and off, a button to reset all the outputs to zero and a single formula field (more formulas can be added by means of the **plus** button on the title bar).

For now, just name the tool **solver** and then tap the blue disclosure icon beside the formula field to open the formula editor.

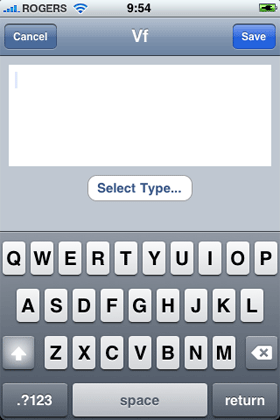

This is the standard formula editor page, but with the addition of a **Select Type...** button, which will allow you to select the property type for the formula, much as you would for an Alph variable.

Tap this button and select **T** from the resulting spinner.

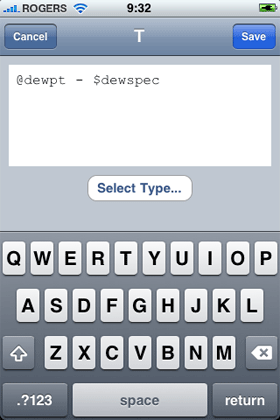

The formula we enter here should evaluate to zero when the solver is converged. In our case we simply want the temperature of the **dewpt** fluid to be equal to the specification in the **dewspec** variable, so enter

@dewpt - $dewspec

In many cases you will probably want to scale this error, keeping in mind the 0.0001 tolerance for convergence, but that tolerance should work fine for a temperature difference.

Tap the **Save** button to return to the main function solver page.

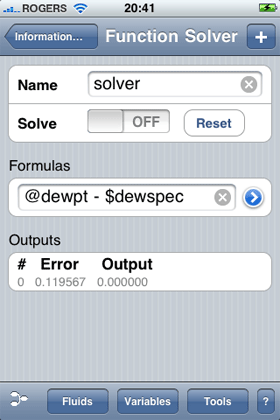

At the bottom of the solve page (tap the **Done** button on the keyboard if it is in the way), we can see that the error has been calculated and is already pretty small as might be expected as we have already manually picked an appropriate LTS temperature.

Before we enable the solver, we need to make use of its output to calculate the temperature of the **lts** fluid.

Go to the **lts** fluid page and open the formula editor for its temperature.

Keeping in mind that the output value of the solver will initially be zero and will range from -10 to 10 and further that the lts temperature will probably be fairly close to the dew point temperature, the following formula should be appropriate:

$dewspec + #solver.0

Function solver output values are referenced by just the formula number, starting with 0. You can also reference the calculated function values with **f0**, **f1** etc.

Tap the **Save** button to return to the main lts page and then switch to the **Bulk** view.

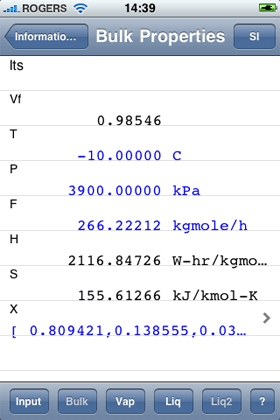

As the solver output is still 0, the temperature should be equal to the **$dewspec** value, namely -10 C.

Return to the **solver** tool and tap the solve switch to attempt the solution.

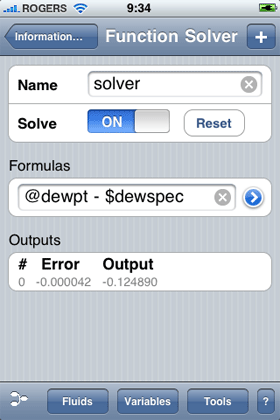

This is an easy problem and the solver should quickly solve. Note the output value and resulting error are shown at the bottom. Switch to the **dewpt** fluid and confirm that its temperature is indeed -10 C (plus or minus 0.0001) and then check the **lts** fluid temperature, which should be about -10.125 C.

Try changing the **dewspec** variable to 0 C and then return to the **dewpt** fluid to confirm it has been recalculated appropriately.

Now let's try creating an error.

Change the **dewspec** temperature to 10 C.

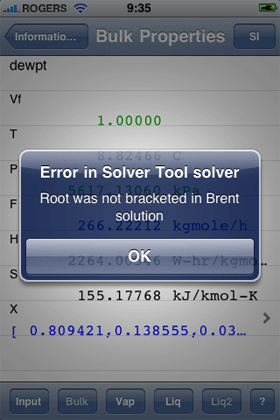

You should get an error like the one shown to the right. When you clear it by tapping **OK**, you will see that the dew point is only 8.8 C, rather than the required 10 C. If you then check the **lts** fluid you will see that it is at 20 C, which corresponds to the specification plus the maximum output range for a single value solution. What is more the vapour fraction is 1, but the dew point is still less than 10 C. Clearly the spec we used cannot be met.

Return to the **dewspec** variable and set it back to -10 C and then return to the **dewpt** fluid. The dew point temperature will have changed, but not to the requested value. What is happening?

Whenever the solver encounters an error or is modified in any way, it disables itself to avoid repeated error messages etc. The **dewpt** value will have changed since the **lts** temperature will have changed to reflect the new **dewspec** value, but it will still be using the output of 10 from the solver, so its value will be 0.

Return to the solver and tap the **Reset** button. This will return the output value(s) to 0 and you should see the error value change from about 9.59 to 0.12 as the **lts** temperature changes accordingly.

Tap the **Solve** switch to again obtain a valid solution.

Let's try adding another equation to solve, by making the rather dubious assumption that we have limited refrigeration compressor power and that we would actually reduce the **lts** pressure to compensate.

First create a new variable of type **Q**. Name it **hpspec** and give it value of 10000 W and then return to the solver and tap the **+** button on the tool bar to add another formula.

Open the new formula's editor page and choose **Q** as the type.

This time the error will be the difference between the calculated power of **c3comp** and the spec. Enter the formula:

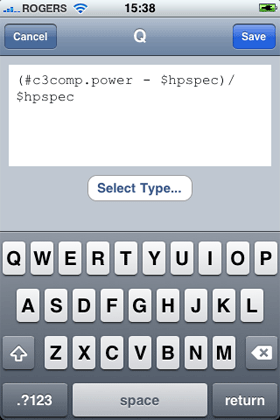

(#c3comp.power - $hpspec) / $hpspec

As the power value is a fairly large number, I have normalized it with the spec value.

Tap the **Reset** button to reinitialize the output values.

Go the **lts** fluid and open the formula editor for pressure.

Since the output value will start as zero, we will add one to it and then multiply that by the **feed** fluid pressure.

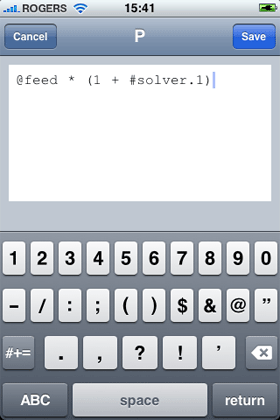

@feed * (1 + #solver.1)

This time we use **#solver.1** to indicate the second output from the solver.

Go to the **lts** fluid bulk properties page.

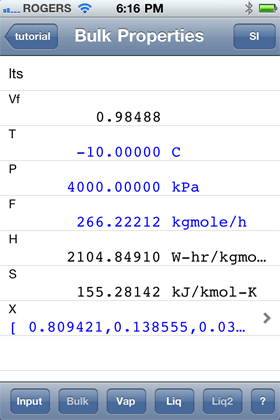

Check that the temperature and pressure are being appropriately calculated for the initial output values.

Return to the solver page.

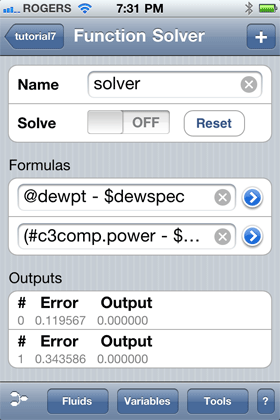

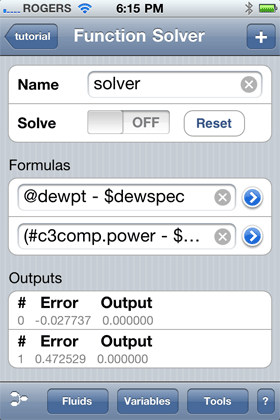

This should be displaying both formulas along with the initial errors as shown to the right.

Tap the **Solve** switch.

After some iteration, the solution should complete and return you to a page like this. Check the **c3comp** tool and the **dewpt** fluid to confirm that both specs have been met. If you check the **lts** fluid, you should see that a temperature of -10.74 C and a pressure of 3585 kPa was necessary to achieve the specifications.

The solver formulas used in this tutorial returned scalar values, but it is also possible to have formulas of type **X** which will add a number of equations equal to the number of compounds in the case to the solver. This, along with a simple quasi manual method of solving recycles, is explored in the recycle tutorial.
